Choke Valve

TRILLIUM BLAKEBOROUGH®

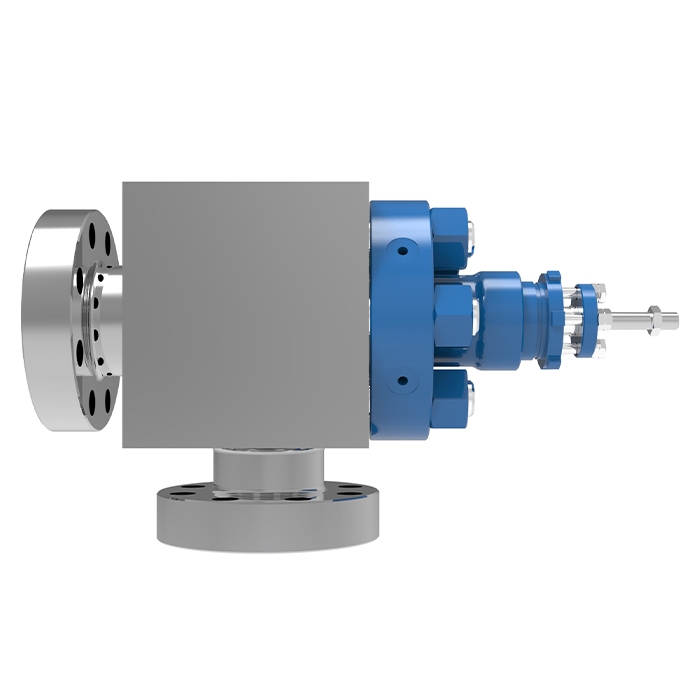

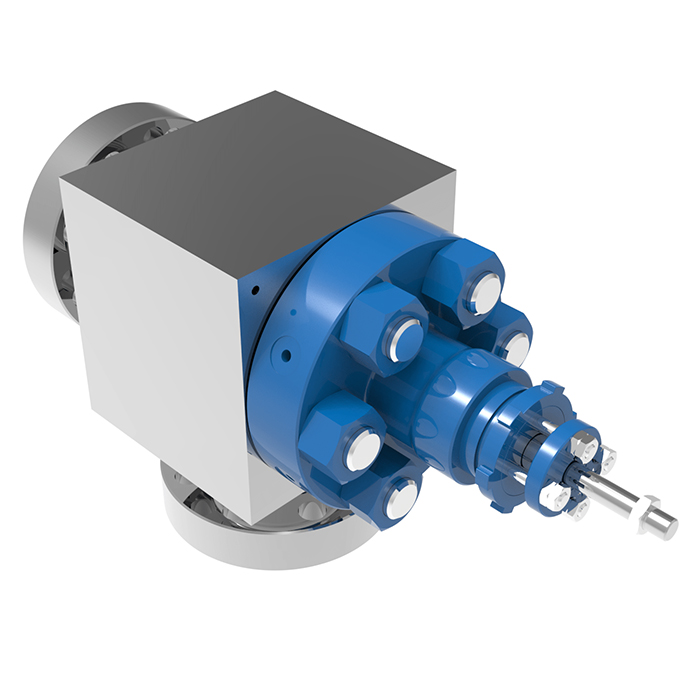

BV992 & BV993 Choke Valve

The Blakeborough® BV992 & BV993 Choke valves are versatile medium and severe service choke valves feature cage-guided design for production and separation injection applications due to the ability to fit severe service trims. Trillium Flow Technologies™ offers a full range of control choke valves based on both API and ASME designs according to the specific customer requirements.

Key Features

Body: Typically angle design with flow over the plug head to increase protection from solid contaminants
Globe valves can be provided if specifically required
Streamlined flow passages to prevent abrasion due to contaminated flows
Cast, forged or hipped body options
Stable internally guided trim
Packing design in compliance with ISO 15848-1
Top entry bonnet, valve can be serviced without removal from the line

The Blakeborough® range of choke valves, BV992 & BV9933, will meet the requirements of choke applications in oil production, gas injection, and seawater injection applications where pressure drops of up to 500 bar are common.
The choke valve is designed and manufactured to meet the requirements of API 6A for Product Specification Levels (PSL) 1, 2, 3 and 4, Material, Temperature, and Performance Ratings. The valve incorporates a complete range of trim designs from standard through to multi-cage manufactured from tungsten carbide or advanced ceramic materials for increased erosion resistance.
